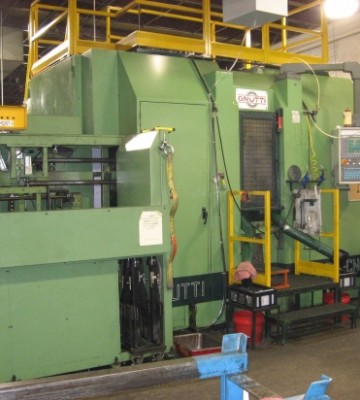

transfer GNUTTI FM 18-130 CN from bar

transfer GNUTTI FM 18-130 CN from bar

Year: 2003
Unit Center Dimension: 66.9′
Clamp Jaw Center to Spindle Unit Nose: 9.25′
Clamp Jaw Stroke: .47′
Frame Clearance: 21.6′
Quill Stroke: 5.18′
Quill Diameter: 4.3′
Turret Positions: 10
Spindle Taper: ISO 40

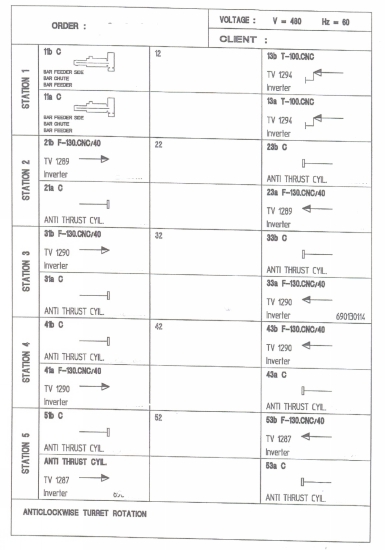

Station 1: Bar Feed

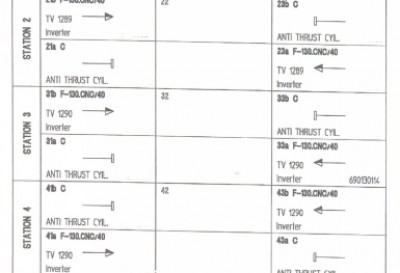

Station 2: D+D 10 HP 400-1900 RPM
Station 3: D+D 10 HP 400-1900 RPM
Station 4: D+D 10 HP 400-1900 RPM
Station 5: D+D 10 HP 302-2513 RPM

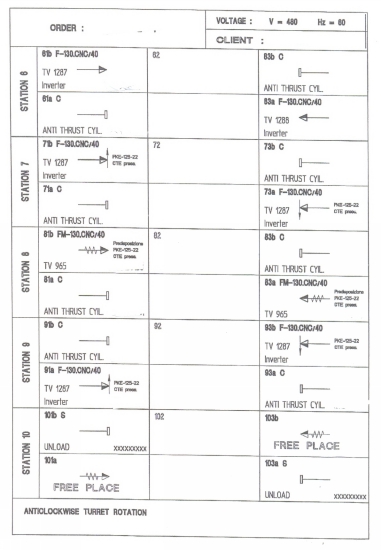

Station 6: D+D 10 HP 302-2513 RPM

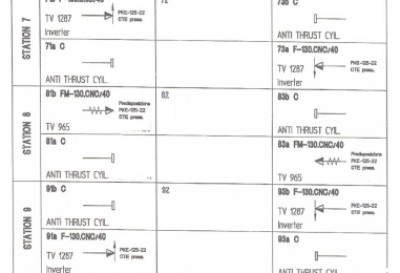

Station 7: D rec + D rec 10 HP 302-2513 RPM
Station 8: T/D+T/D 13.9 HP 82-1500 RPM
Station 9: D rec + D rec 10 HP 302-2513 RPM
Station 10: Unload
EQUIPPED WITH:
Gnutti CNC Control
Chip Conveyor

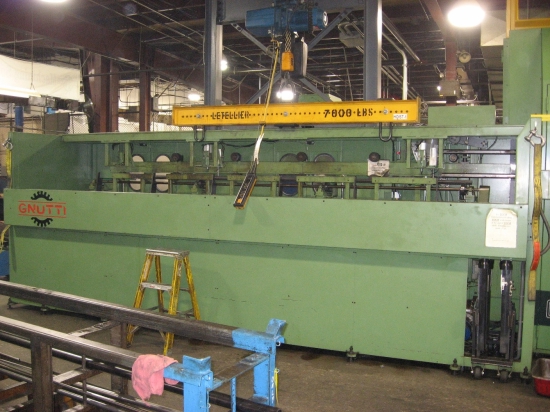

Gnutti 196′ Bar Feeder
Gnutti Sinmatic OP17 CNC Bar Feed Control
Machine is currently setup for 1.625′ Nuts (max 2′)
